2 Packs Air Ride Suspension Bag Standard 2500 Lb Npt Single Port Heavy Duty

Introduction:

Car air suspension spring bag is one of the most popular suspension kits available, it delivers some of the greatest performance benefits and convenience for all types of vehicles. Air bag suspension kits raise the vehicle high enough to compensate for any extra weight. This helps to keep the vehicle level while towing and hauling and prevents rear sagging, bottoming out, and excessive pressure on your tires.

Maxpeedingrods provide a full assortment of air suspension spring bags for all your suspension needs!

Fits for

Universal Air Suspension Bags for Ford F150/F250, for GMC Sierra, for Chevrolet Silverado, for Dodge Ram 1500 2500 3500, etc.

For most brand trucks

Please double check dimension before purchasing.

Also Compatible With Most mini trucks, compact pickups, classic cars & hot rods, and custom suspension setups

Features:

1、OEM Product：Easy to install
2、Test more than 5,000,000 times：Durable and Safe
3、24 hours air tightness test ≤0.02MPa：Air Tightness Guarantee
4、Temperature Range ≥ -40℃/ ≤ 70℃(≥ -40°F/≤ 158°F)：Premium Natural Rubber Material

Specification:

Condition: 100% Brand New
Loading cap. at 3.0bar:2.88KN
Loading cap. at 7.0bar:7.25KN
Placement on Vehicle: Left,Right,Front,Rear
Air spring bag capacity:  2500LBS
Min height: 72mm±5mm
Max height: 218MM±5mm
Working stroke: 146mm±5mm
Single air port size: 1/2NPT
Air fitting elbow connector: G1/2-φ6(male) (Not included in the package)
Install hole size: 3/8-16UNC
Top plate diameter:113mm
Air spring bag body diameter:148mm±2mm

Package Includes:

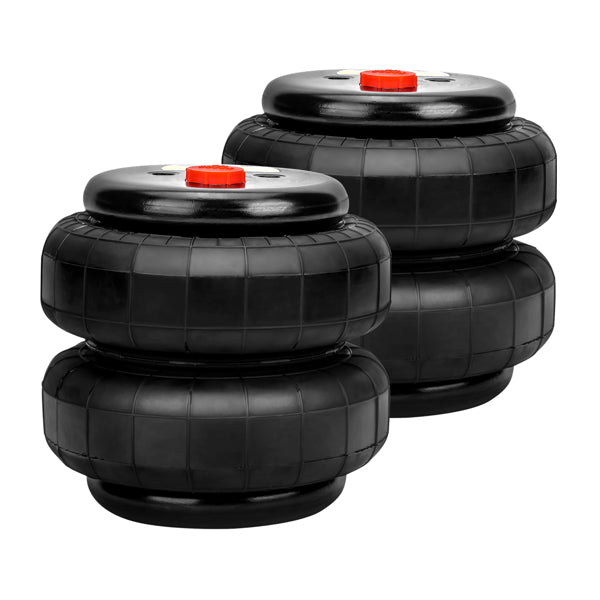

2x 100% brand new standard 2500 lbs air suspension Bags

NOTE：Please confirm the air spring specifications to ensure compatibility with your vehicle.

Authority ID：MXR02FXSY

Notice：California Prop 65 Warning
